Why Raw Birch Edges Fail Beside Heat and Steam
Failing to seal birch plywood properly in a kitchen guarantees delamination, warping, and eventual structural failure. The damage often begins quietly. A door beside the dishwasher feels slightly rough along its lower edge. One veneer line darkens. Months later, the corner starts to lift.
The Dishwasher Microclimate
A kitchen subjects cabinetry to repeated changes in temperature and humidity. Boiling water sends vapour toward upper doors, wet hands leave droplets around handles, and spills settle against lower edges. The dishwasher creates an especially severe local climate: in typical conditions, steam cycles can reach 65°C to 75°C near the vent.
That combination of heat and moisture drives water vapour into exposed core veneers. Delamination of 13-ply architectural birch cores can begin near an approximately 75°C dishwasher vent when an edge coating is incomplete. Under daily use, moisture ingress may produce visible veneer separation within an estimated 18 to 24 months.
The problem rarely affects every door equally. Cabinetry across the room may remain stable while the panel immediately beside the appliance swells. Room-level humidity readings therefore give an incomplete picture of the exposure.
Exposed Edges Require Discipline
Visible plywood laminations give Scandinavian cabinetry its light, legible construction. They show how the object is made and soften the visual weight of a slab door. Yet the same edge that supplies this character also exposes the most absorbent part of the panel.
Stainless steel around a sink gains resilience from its chromium oxide surface layer. Birch has no equivalent self-renewing defence. Its protection comes from careful sanding, penetrating size, and a continuous finish film.
Steam-Side Priority
Treat door bottoms, dishwasher-adjacent edges, sink-base panels, and cut-outs as primary moisture zones. A pristine broad face cannot compensate for an open core edge.
Choosing Birch Plywood That Can Carry an Exposed Edge
The finish can only preserve the material beneath it. A handsome top veneer does little for an exposed edge if the core contains gaps, overlaps, or irregular inner plies.
Core Quality Before Face Grade
For an 18mm door with visible laminations, specify architectural-grade Baltic birch with a minimum 13-ply core. The closely spaced veneers create a fine, regular stripe and provide continuous support along routed or cut edges. Inspect full sheets under raking light and examine all factory edges before accepting the batch.
Standard exterior-grade plywood may tolerate damp service in other settings, yet its visible core voids and inconsistent veneer thickness undermine this particular detail. Filler patches can interrupt a clear-finished edge, while hidden gaps create pockets where a sizing coat cannot form an even barrier.
- Look along the full edge: reject sheets with open voids, crushed corners, or abrupt changes in ply thickness.
- Compare the face veneers: select adjacent door fronts from sheets with compatible grain and colour.
- Keep batch offcuts: the test specimen must come from the same material as the finished doors.
Acclimatise Before Cutting
Store the boards flat in the conditioned kitchen environment for around 7 to 10 days at near 45–55% relative humidity before fabrication. Use stickers or another form of even support so air reaches the stack without allowing the panels to sag.
This pause lets the veneers approach the moisture conditions they will encounter in service. Cutting immediately after moving cold or damp sheets indoors can release uneven stresses, leaving a newly sized door twisted before finishing begins.
Cut Without Tearing the Veneer
A triple-chip grind blade with approximately 80 teeth gives a clean starting point for straight door cuts. Keep the blade sharp, support the sheet fully, and mask the cut line where the face veneer tends to splinter. A sacrificial backing board also supports fibres as the blade exits.
Cut every door slightly oversize only when the fabrication sequence includes a final trimming pass. Otherwise, work directly to the prepared cutting schedule and label each panel immediately. Sanding should refine an edge, not correct a wandering saw line.

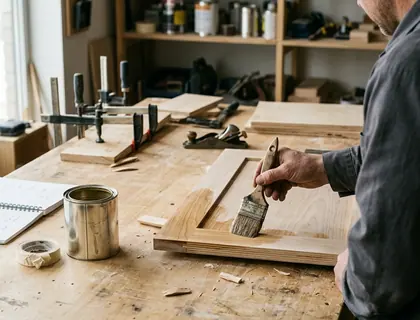

Building a Moisture Barrier Across the Plywood Core
End-grain capillaries within the stacked veneers form the principal path for moisture. Broad faces absorb finish relatively evenly; cut edges pull liquid into alternating grain directions at different rates. The sealing sequence must first control that thirst and then build a continuous barrier.
Sand for Even Absorption
- Begin at 120 grit to remove saw marks and flatten minor ridges between plies.
- Continue through intermediate abrasives rather than jumping directly to the final grit.
- Finish at 220 grit, keeping the sanding block square to the face.
- Remove dust from every veneer line and inspect under side lighting.
Rounded edges may feel pleasant, but excessive rounding thins the coating at the point most likely to receive impact. A small, consistent easing is preferable. The goal is a clean transition that accepts finish without leaving a sharp, fragile corner.

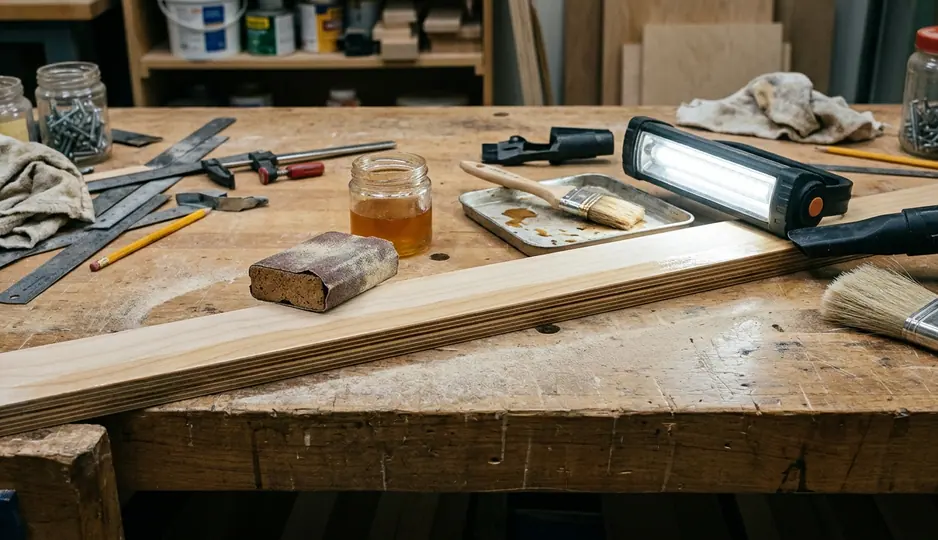

Size First, Build Second
Apply the initial sizing coat thinned by around 15 parts per hundred with distilled water. This lower-viscosity layer enters the end-grain capillaries before higher-build coats close the surface. Brush or pad it along the edge methodically, watching for sections that turn dull immediately; rapid dulling signals uneven absorption and calls for careful attention during the next application.
After the sizing layer dries, smooth raised fibres without cutting through to bare wood. Follow with the specified barrier coats, carrying each one slightly onto both faces so the edge film meets the face finish continuously. Pinholes, dry veneer lines, and exposed corners interrupt that continuity.
Indoor Boundary
This multi-coat protocol suits conditioned indoor kitchens. It is insufficient for outdoor cabinetry exposed to direct precipitation or an unconditioned environment, where the panel edges face a different moisture load.
Even a meticulous coating remains a water-resistant assembly rather than an absolutely waterproof one. Its practical value lies in delaying moisture penetration long enough for ordinary steam and splashes to evaporate or be wiped away.
Keeping the Scandinavian Surface Matte and Washable
The desired surface often resembles unfinished birch: pale, quiet, and low in sheen. Kitchen use asks more of it. Finger oils, food residue, and routine wiping demand a finish that can be cleaned without polishing into glossy patches.
Two Routes to a Low Sheen
Hardwax oil preserves tactile warmth and keeps the grain visually close. A low-sheen water-based polyurethane forms a more defined film with stronger resistance to repeated washing. Where both qualities matter, a compatible penetrating hardwax oil can sit beneath a specialised two-component water-based polyurethane.
Compatibility matters more than the appeal of either product in isolation. Follow the coating maker’s cure and overcoating requirements, then verify the entire sequence on a batch offcut. An oil that remains active beneath the topcoat can compromise adhesion.
Thin Coats Create the Better Surface
Apply three coats at a wet film thickness of an estimated 2 to 3 mils per coat. A single heavy application tends to gather at lower edges, bridge over small defects, and cure unevenly. Thin layers flow more predictably across the face and make it easier to preserve the crisp plywood profile.
Allow approximately 12 to 16 hours of drying time between coats. Before the final topcoat, scuff sand with a 320-grit abrasive pad. The pad removes dust nibs and gives the next layer a fine mechanical key without visibly flattening the veneer beneath.
- Work from the least visible edge toward the principal face.
- Maintain a wet edge across each uninterrupted surface.
- Check corners for runs before leaving the panel to dry.
- Keep freshly coated pieces horizontal when the product instructions permit it.
The completed door should feel continuous under the fingertips. A rough edge, glossy ridge, or pale dry line deserves correction before hardware is installed. Material movement continues after finishing, as the broader principles of wood moisture dynamics explain, so balanced coating and stable indoor storage remain part of the fabrication logic.
Verifying the Finish With a Direct-Steam Sample
A room test cannot reproduce the thermal shock that reaches a door above simmering pasta water. A direct-steam suspension test places the finished sample in that concentrated plume and exposes weak edge sealing before the same coating is applied across the kitchen.
A Complete Test to Copy
- Cut the sample. Take a 6 × 6 inch block from the exact 18mm, 13-ply birch batch used for the doors. Preserve at least one factory-quality face and prepare the cut edges exactly as the doors will be prepared.
- Sand the core. Progress from 120 grit to 220 grit. Ease the corners consistently, clear dust from the veneer lines, and inspect for voids.
- Seal the edge. Apply the first sizing coat thinned by near 15 parts per hundred with distilled water. Once dry, smooth raised fibres and add the planned higher-build barrier coats, extending them onto both faces.
- Finish the faces. Apply the chosen low-sheen system in three coats at around 2 to 3 mils wet film thickness per coat. Leave an estimated 12 to 16 hours between coats and scuff with a 320-grit abrasive pad before the final topcoat.
- Allow full cure. Set the sample aside for the mandatory 14-day chemical cure. Testing a merely dry film gives little useful information about the completed coating.
- Prepare the steam source. Bring water to a steady simmer in a stable pot beneath a secure, non-combustible support. Suspend the sample exactly 4 inches above the water with one sealed edge facing the rising steam.
- Run the exposure. Maintain continuous steam for approximately 45 minutes. Keep the position fixed and observe the edge without touching or wiping it during the test.
- Inspect after cooling. Look along each veneer line for whitening, raised fibres, softening, blisters, or separation. Compare the steamed edge with the opposite edge under the same light.
If the sample remains smooth and the coating stays continuous, retain it as the control beside the finishing area. The fabricator can now repeat the recorded sequence on the doors: 120-to-220-grit edge preparation, thinned sizing coat, barrier coats, three low-sheen finish coats, 320-grit scuff before the final layer, and a full 14-day cure before installation.
